FTTH FWDM TX 1540-1560 RX 1260-1500&1575-1650 FWDM 波分復用器

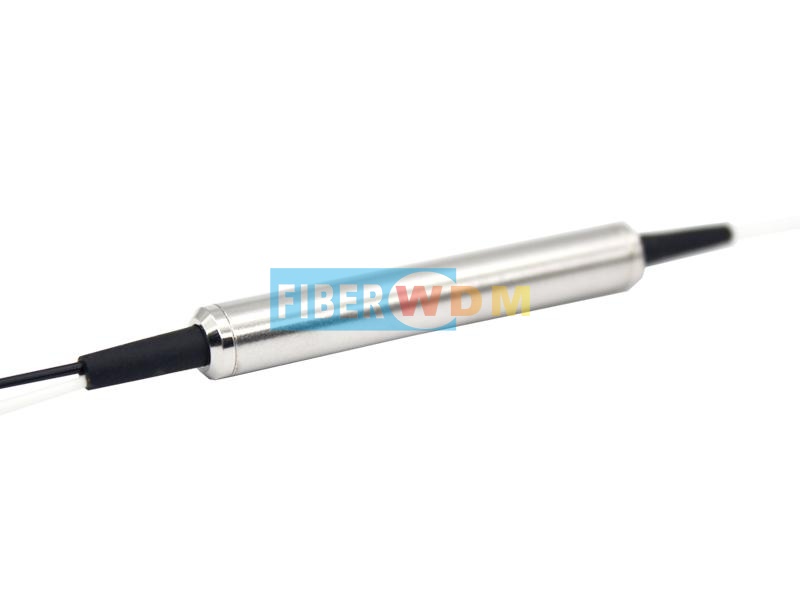

Single channel 3 port FWDM filter, works in FTTH/FTTx optical network
Low insertion loss
High channel isolation
Low polarization dependent loss
Exceptional reliability and stability

現在查詢下載

類別

熱門產品

產品詳細信息

FTTH FWDM TX1540-1560 RX 1260-1500&1575-1650 FWDM Component CATV、GEPON、XGS-PON、NG-PON2

FIBERWDM Provide Passive FWDM Filter TX1540-1560 RX 1260-1500&1575-1650 is low loss and reliable performances. It works in FTTH/FTTX, in PON (Support GEPON、XGS-PON、NG-PON2） system works on 1260-1500&1575-1650nm,and CATV signal is delivered over same fiber using 1550±10nm.

Product

RACK Panel

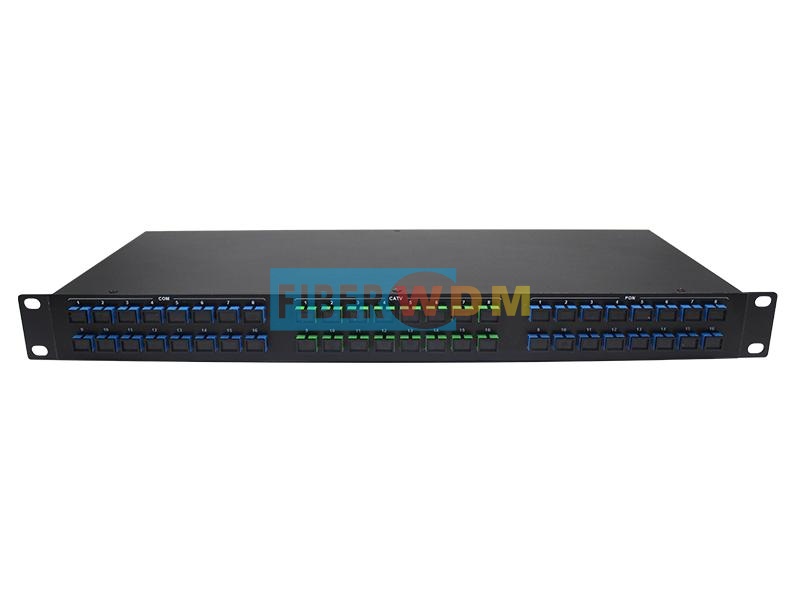

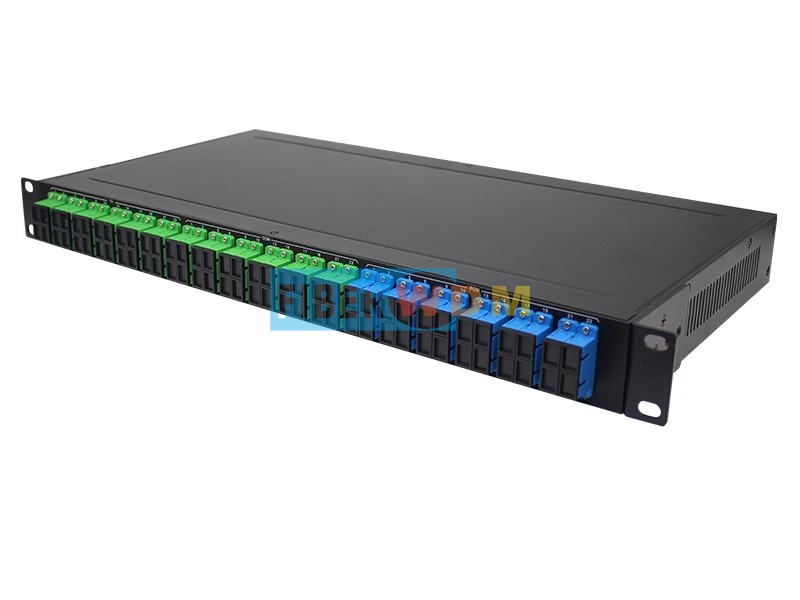

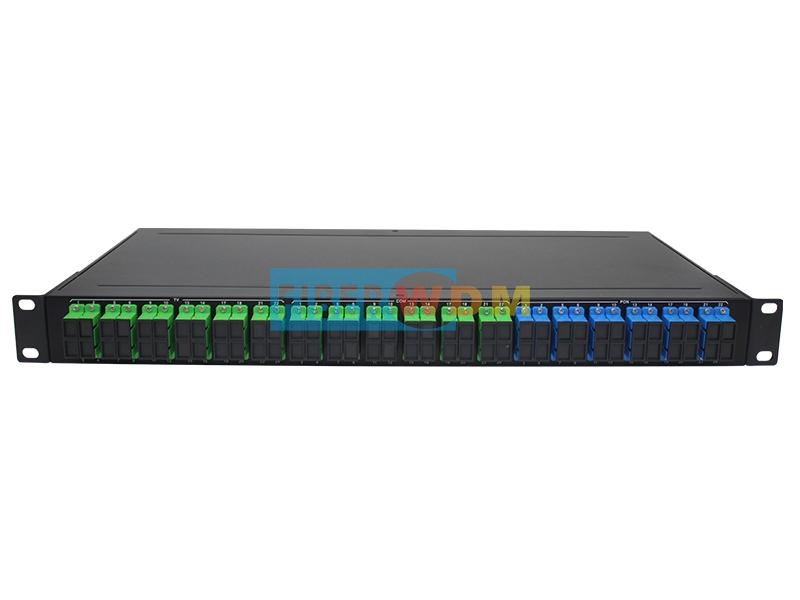

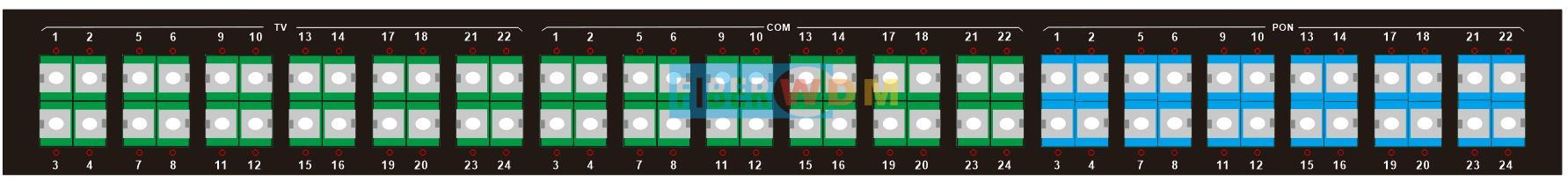

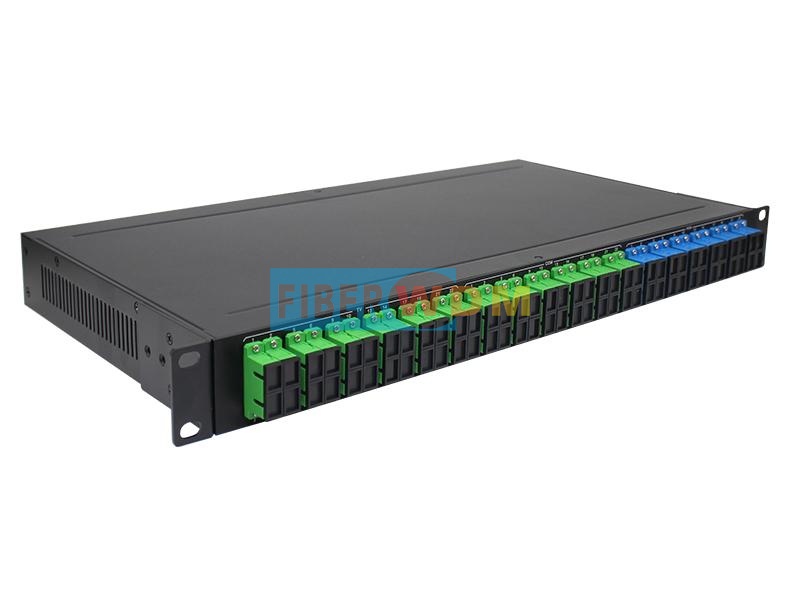

1U Rack Support 24* CATV + PON

Specifications

Wavelength	TX1550±10nm RX1260-1500&1575-1650nm	Technology	TFF (Thin Film Filter)
Passband	1540~1560nm	Reflection	1260~1500&1575~1650
Passband ripple	≤0.30dB	IL @ Passband	≤0.60dB
Reflection band ripple	≤0.20dB	IL @Reflection	≤0.40dB
Transmission isolation (adj channel)	≥30dB	Transmission isolation (non-adj channel)	≥50dB
Reflection isolation	≥15dB	Polarization dependent loss	≤0.1dB
Polarization mode dispersion	≤0.2ps	Thermal Stability	≤0.005N
Directivity	≥50dB	Return loss	≥45dB
Optical power handling	≤500mW	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Fiber type	SMF-28e	Package dimension	Steel∮5.5 xL34mm ABS 902010mm 1U 44023044mm

Note. 1) All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.

2)PMD and chromatic dispersion values are guaranteed by design.

3) Specifications are subject to change without notice

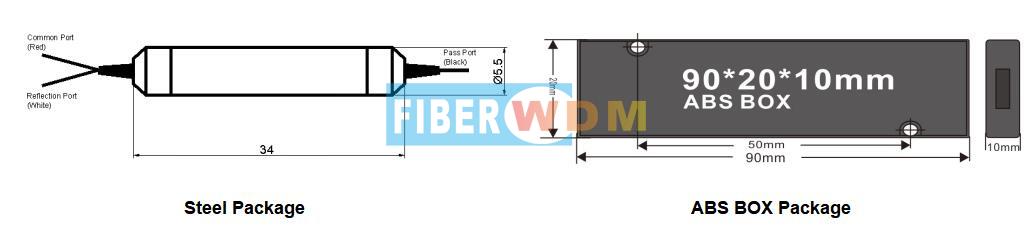

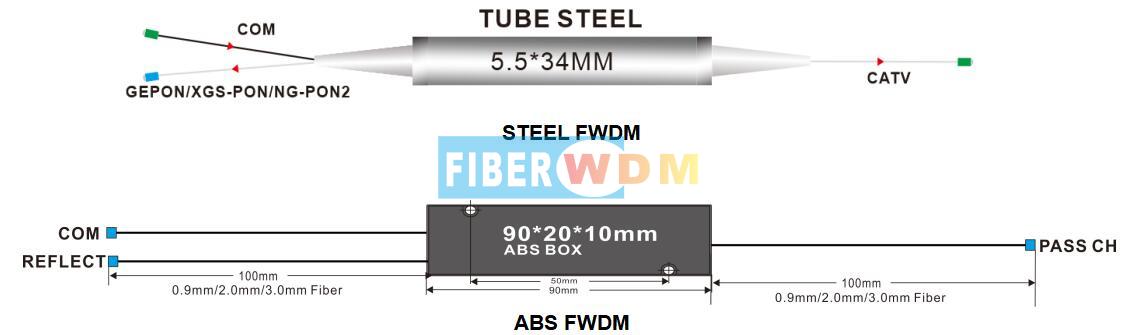

Component Dimensions drawing（mm）

Note:Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.

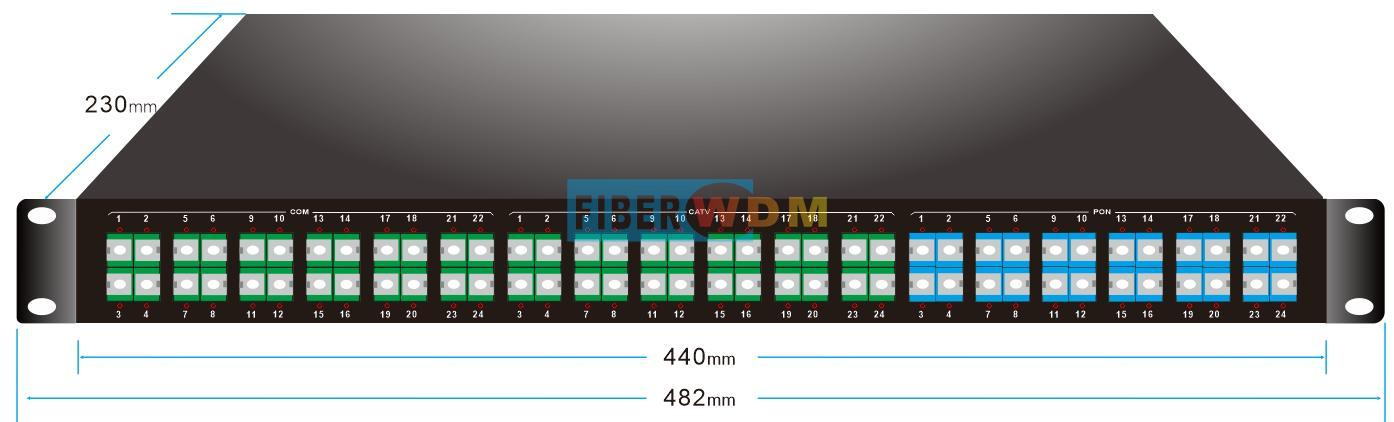

1U RackDimensions drawing（mm）

Ordering information

1) 1 channelComponent

RD-FW	- Package	-Connector Type	U/A	-5456	-Fiber Type	-Fiber Length
	S: Steel	0: No connector	U: UPC	TX:1540~1560nm	9: 0.9mm Fiber	005: 0.5+/-0.1m
	B: ABS BOX	1: LC	A: APC	RX:1260~1500&1575~1650	20:2.0mm	01: 1.0+/-0.1m
		2: SC			30:2.0mm	others
		3: FC			Others
		4: Others

2) N channel 1U Rack

RD-FW	- xx	- Package	-Connector Type	U/A	-5456
	08: 8 channel	1U: 1U rack	1: LC	U: UPC	TX:1540~1560nm/ RX:1260~1500&1575~1650
	16: 16channel	B: ABS BOX	2: SC	A: APC
	24: 24channel		3: FC	Others
	4: Others		4: Others
