200G QSFP56 AOC Transceiverr

Features

Up to 50Gbps data rate per channel by PAM4 modulation
Support 200GAUI-4 electrical interface
Integrated 850nm VCSEL array and PD array
Single +3.3V power supply
Case temperature range: 0 ~ +70℃
Hot-pluggable QSFP form factor
RoHS complaint

Applications

Data centers and Cloud Networks

Standards

IEEE 802.3cd
SFF 8679
CMIS4.0 or SFF8636

現(xiàn)在查詢下載

類別

熱門產品

產品詳細信息

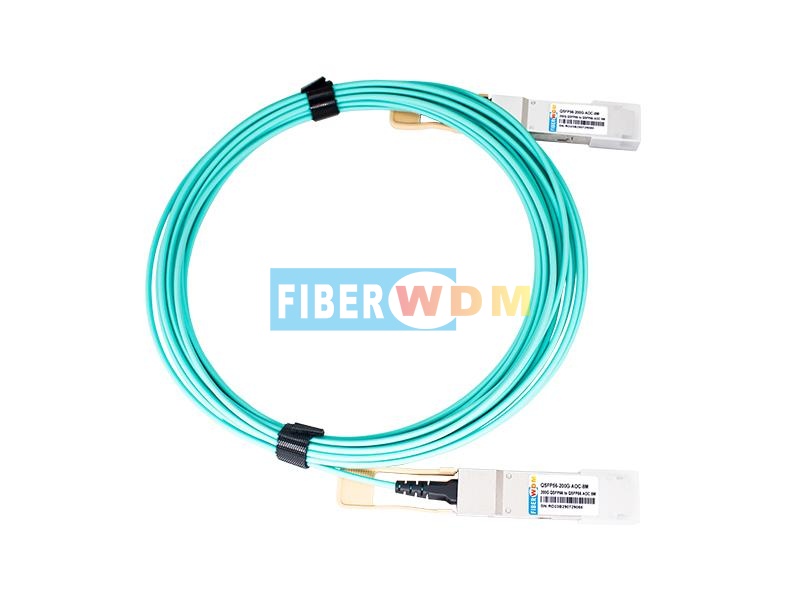

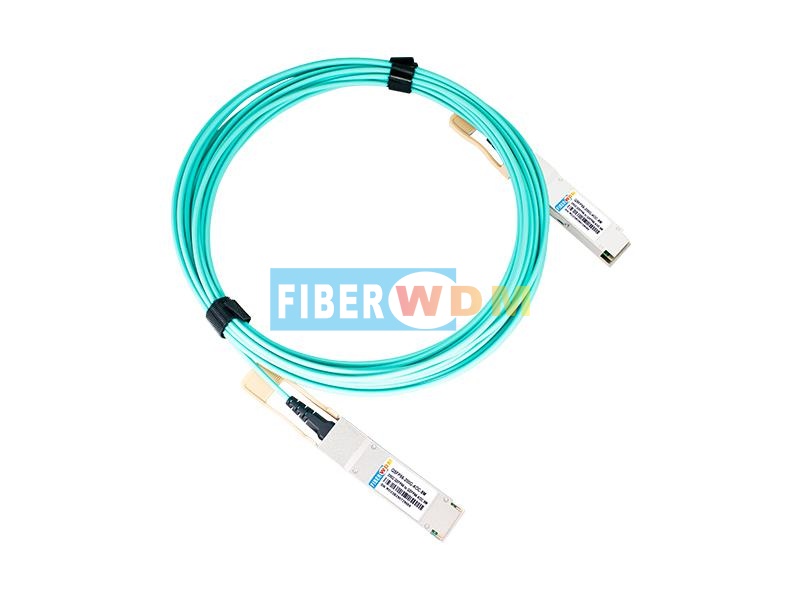

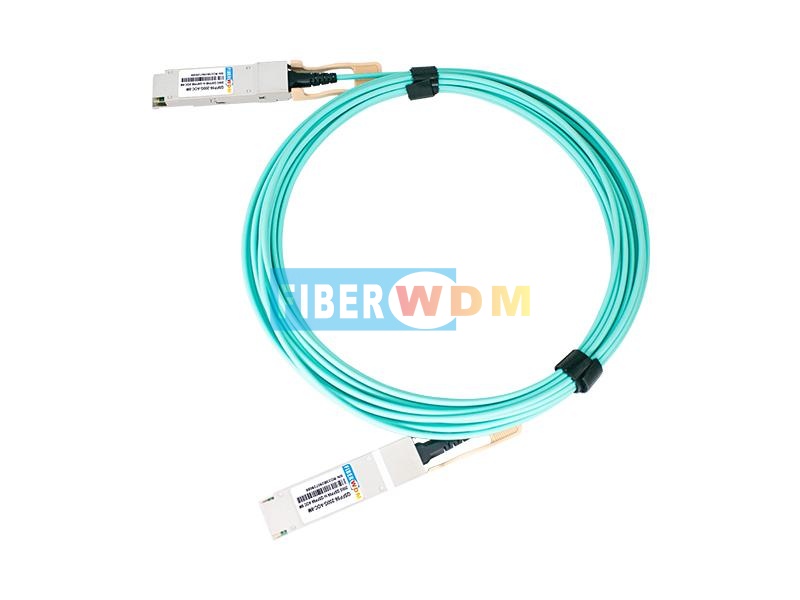

200G QSFP56 Active Optical Cable

Absolute Maximum Ratings

Product

Modula

tion

Protocol

Nominal Rate

Specifications

Aggregate

(Gbps)

Electrical

Lanes (Gbaud)

ppm

High Speed

Electrical

Pre-FEC Max BER

Link

200G -AOC

PAM4

IEEE802.3cd

212.5

26.5625

±100

200GAUI-4

2.4E-4

0.5~

100m

Parameter	Symbol	Unit	Min	Max
Case Operating Temperature	Top	℃	0	70
Storage Temperature Range	Ts	℃	-40	85
Relative Humidity	RH	%	0	85
Power Supply Voltage	Vcc	V	-0.5	3.6

Recommended Operating Conditions

Parameter	Symbol	Unit	Min	Typ	Max
Operating Case Temperature Range	Tca	oC	0	/	70
Power Supply Voltage	Vcc	V	3.135	3.3	3.465

Electric Ports Definition

Parameter	Symbol	Unit	Min	Typ	Max	Notes
Supply Voltage	VCC	V	3.135	3.3	3.465
Power Consumption	Pc	W			4	Per end
Transmitter
Input Differential Impedance	RIN	Ω	80	100	120
Single Ended Data Input Swing	VIN	mVp-p	90		500
Transmit Disable Voltage	VDIS	V	2		VCCHOST
Transmit Enable Voltage	VEN	V	VEE		VEE+0.8
Transmit Fault Assert Voltage	VFA	V	2		VCCHOST
Transmit Fault De-Assert Voltage	VFDA	V	VEE		VEE+0.8
Receiver
Single Ended Data Output Swing	VOD	mVp-p	200		500
LOS Fault	VLOSFT	V	2		VCCHOST
LOS Normal	VLOSNR	V	VEE		VEE+0.8
Differential termination mismatch		%			10
IIC communication
IIC Clock frequency	-	KHZ	/	100	400
clock stretching	-	us	/	/	500

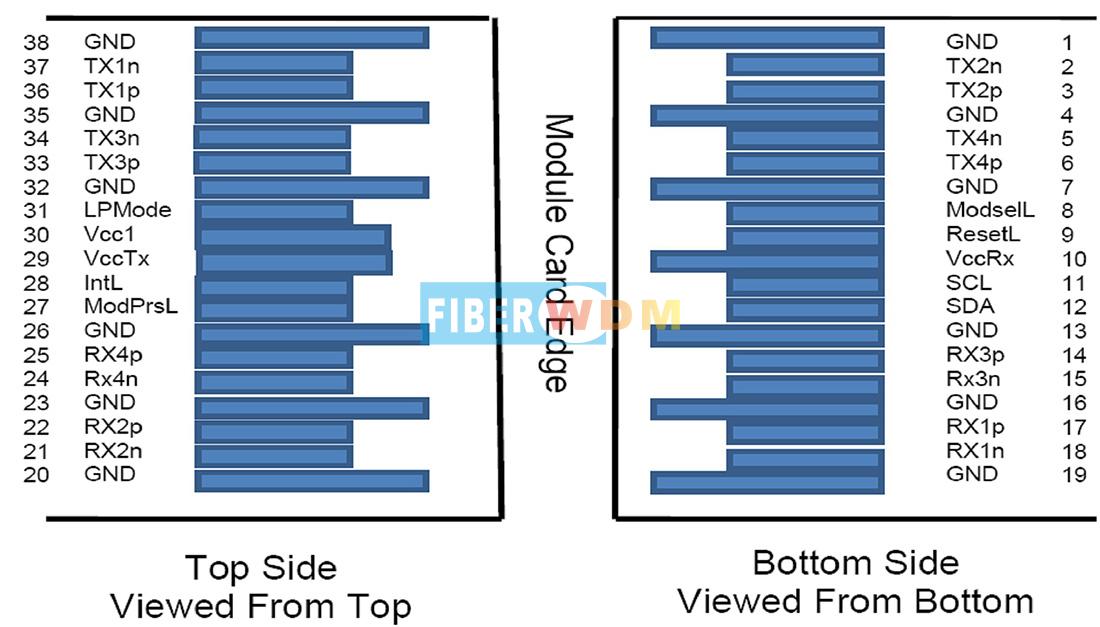

QSFP56 Connector and Pinout Description

The electrical interface to the transceiver is a 38 pins edge connector. The 38 pins provide high speed data, low speed monitoring and control signals, I2C communication, power and ground connectivity. The top and bottom views of the connector are provided below, as well as a table outlining the contact numbering, symbol and full description.

Module Memory Map

Compatible CMIS rev 4.0 Or SFF8636

Ordering information

Part Number	Description
QSFP56-200G-AOC-1M	200G QSFP56 AOC 1M
QSFP56-200G-AOC-3M	200G QSFP56 AOC 3M
QSFP56-200G-AOC-5M	200G QSFP56 AOC 5M
QSFP56-200G-AOC-7M	200G QSFP56 AOC 7M
QSFP56-200G-AOC-10M	200G QSFP56 AOC 10M
QSFP56-200G-AOC-15M	200G QSFP56 AOC 15M
QSFP56-200G-AOC-20M	200G QSFP56 AOC 20M
QSFP56-200G-AOC-xxM	200G QSFP56 AOCxxxM
