10G DWDM SFF 40km Transceiver -40℃ To 85℃

Features

1550nm or DWDM EML Laser with TEC,Available in all C‐Band Wavelengths on the 50GHz
PIN- TIAReceiver
LC duplex connector or customizable pigtail fiber
Single Channel+ 3.3V Power Supply
The CDR off-line mode supports 155-9.95 GBIT/s bit rate, and the CDR mode supports 9.95-10.3125 GBIT/s bit rate
Internal Transmitting/Receiving CDR
-40℃ to 85℃ Working Industria?Temperature
Suitable for40km SMF connection
Comply with SFF-8472 Rev 10.2
Whole Metal Shell and Excellent electromagnetic interference performance
Completely comply with RoHS Standard

現在查詢下載

類別

熱門產品

產品詳細信息

RSFD-10GD-CXX Series

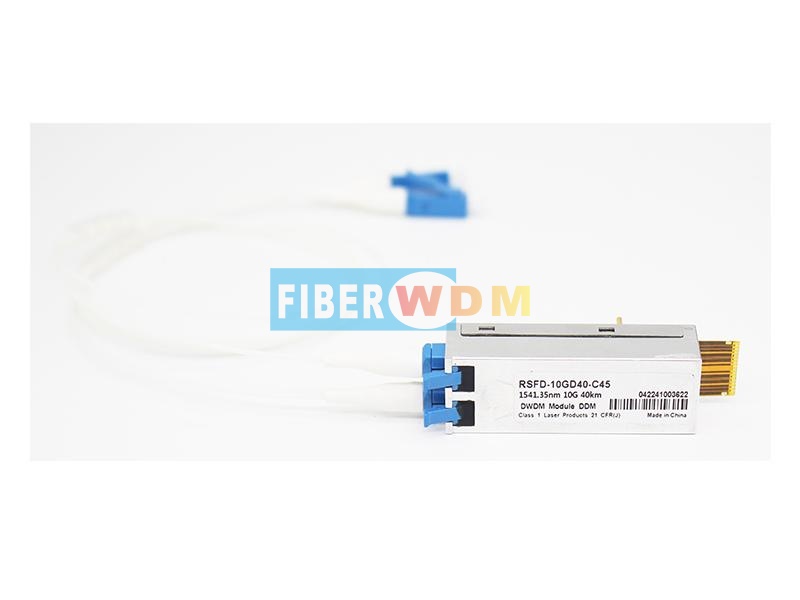

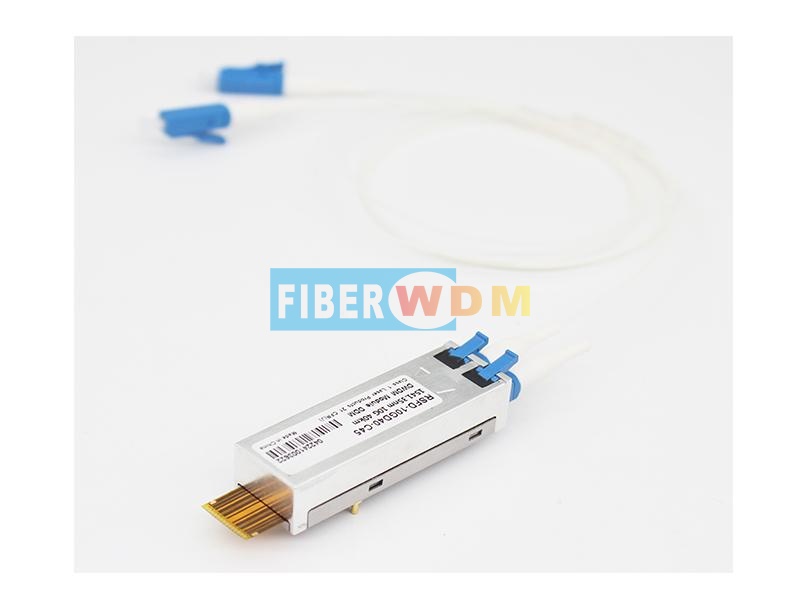

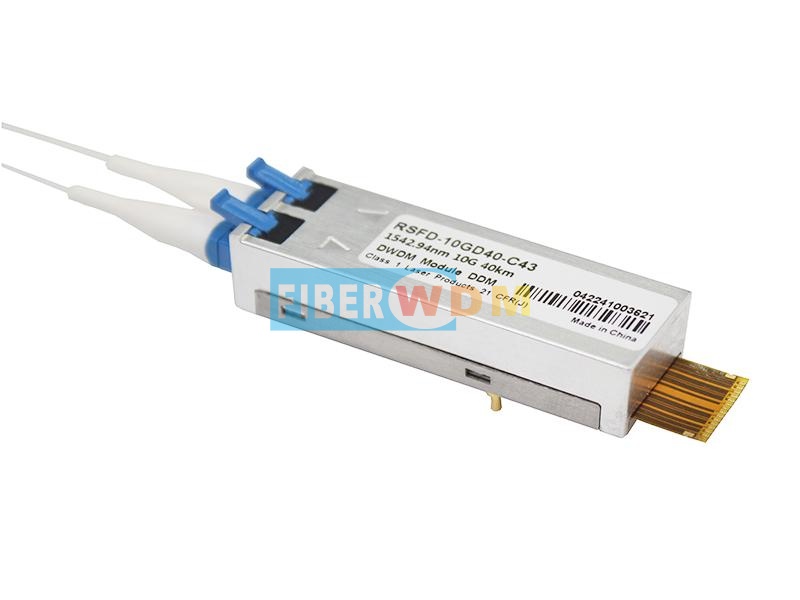

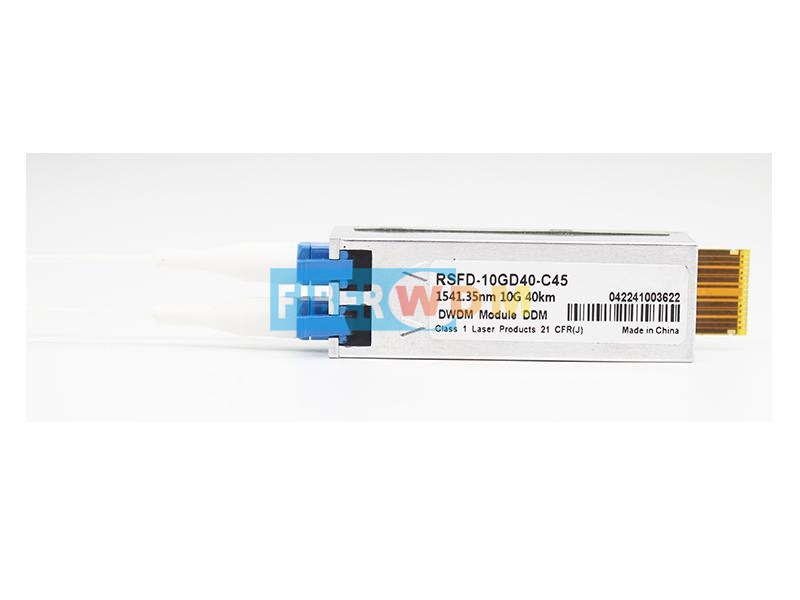

155M~10Gb/s 40km DWDM SFF Transceiver Module, Duplex LC, +3.3V,50GHz, DWDM EML, Single mode

10G dwdm SFF 40km transceiver

FIBERWDM's RSFD-10GD40-Cxx is a surface mounted transceiver module, it supports 155-9.95 GBIT/s bit rate in the CDR off-line mode, and9.95-10.3125 GBIT/s bit rate in CDR mode.Suitable for40km SMF connection, and-40℃to 85℃ Working Industrial Temperature, it grate used in DWDM transfer mission system.

Diagrammatic Layout

Product Information

Type	Bite Rate	Wavelength of Laser(nm)	Transmission Range(km)	Fiber Type	Connector	Temperature
1550	155M-10.3125G	1550	40	SMF	LC	-40~+85℃
DWDM	155M-10.3125G	50Ghz DWDM	40	SMF	LC	-40~+85℃

DWDM wavelength Guide, please check in datasheet, or contact us.

Absolute Maximum Ratings

Parameter	Simbol	Min	Typical	Max	Unit	Annotation
Power Voltage	Vcc3	-0.5	-	+3.6	V	2
Temp of Storage	Ts	-40	-	+85	°C	2
Humidity of Working	RH	0	-	+95	%	2

Note2:Exceeding any of these values can permanently destroy the device.

Recommended Working Environment

Parameter	Simbol	Min	Typical	Max	Unit	Annotation
Working Temperature of Shell	TC	-40	-	+85	°C
Working Voltage	Vcc	3.14	3.3	3.47	V
Working Current	Icc	-	-	600	mA
Working Rate Bit	BR	155	-	10.3125	Mbps

Electrical Property

Parameter			Simbol		Min	Typical	Max	Unit	Annotation
Transmitter
Differential Input Voltage Swing			Vin,P-P		180	-	700	mVPP
Differential Input Impedance			ZIN		80	100	120	Ω
Transmitting Fault	Running Normal		VOL		0	-	0.8	V
Transmitting Fault	Transmitter Fault		VOH		2.4	-	VCC+0.4	V
Transmitter OFF	Running Normal		VIL		0	-	0.8	V
Transmitter OFF	Laser OFF		VIH		2.4	-	VCC+0.3	V
Receiver
Differential data output swing				Vout	400	600	850	mV
Differential Output Impedance				ZD	80	100	120	Ω
Output Rising Time (20-80%)				TR	25	-	-	ps
Output Falling Time (20-80%)				TF	25	-	-	ps
Receiving Signal Detection		Running Normal		VOL	0	-	0.4	V
Receiving Signal Detection		Loss of Receiving signal		VoH	2.4	-	VCC	V

Optical Property

Parameter	Simbol	Min	Min	Typical	Max	Annotation
Optical Emission Characteristics
Bit Rate	BR	155	-		Mbps
Bit Rate	BR		-	10.3125	Gbps
Range of Central Wavelength	λc1	-	1550	-	nm
Range of Central Wavelength	λc2	1529.16	-	1547.72	nm
Transmit off optical power	Poff	-	-	-30	dBm
Average Optical Power	P0	-3	-	2	dBm	1
Extinction Ratio	ER	8.2	-	-	dB
Side Mode Suppression Ratio	?λ	30			nm
Optical Receiving Characteristics
Bit Rate	BR	155	-		Mbps
Bit Rate	BR		-	10.3125	Gbps
Receive Sensitivity	Pmin	-	-	-16	dBm	2
Receiving overload sensitivity	Pmax	2	-	-	dBm	2
Range of Receiving Wavelength	λc1	-	1550	-	nm
Range of Receiving Wavelength	λc2	1529.16	-	1547.72	nm
Received signal detection judgment	LOSD	-	-	-27	dBm
Received Signal Loss Judgment	LOSA	-40	-	-	dBm
Signal detection lag	LOSH	0.5	-	6	dB

Note:

1. Fiber is 9/125 Single Mode

2. Test Condition is Code Pattern：PRBS 231-1，Test Rate：10.3125Gbps，BER=10E-12

Definiation of PINS

Recommended Interface Circuit

Structure Diagram

1.LC duplex connector

P4, LC duplex connector

2.Customizable pigtail fiber(the pigtail fiber length is 0.9mm to 1m)

P5, Customizable pigtail fiber

P6，Mechanical Principle Diagram
